Angenieux Optimo Zooms

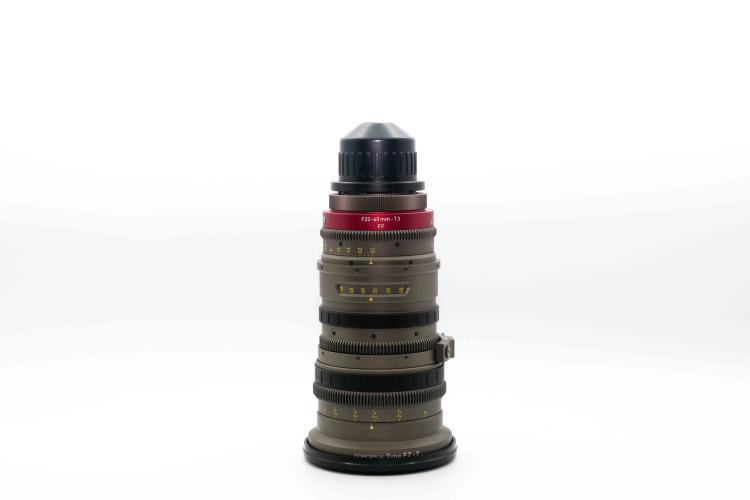

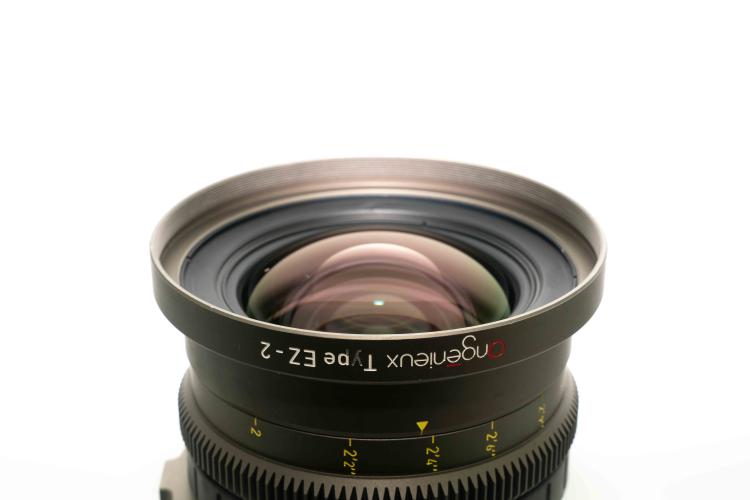

Angenieux has a number of large format zooms. Two lightweight options are available in the 22-60mm T3 and 45-135mm T3 EZ-1 and EZ-2 Zooms as well as a large format 12:1 in the 36-435 T4.2 Angenieux Ultra. All of these zooms offer the same pleasing warm Angenieux look and reliability the industry has become accustomed to.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 22-60mm T3 2’ 114mm 4.6 45-135mm T3 2’ 114mm 4.5 36-435mm Ultra T4.2 5' 162mm 28.1
Angenieux Optimo Ultra Compact Zoom
The 37-102mm Angenieux Optimo Ultra Compact is part of a new generation of high-end lenses, fully designed for the FF/VV format. Lightweight and compact, this zoom is among the lightest on the market and has completely new optical design and mechanics. Features well controlled optical performances at each focal length and focus distance by having a good balance between contrast and resolution. It's appealing cinematic look has low distortion, no ramping, minimal breathing, and also has a close focus of 2ft / 0.6m, enabling extreme close-up shots.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 37-102mm T2.9 2 ft 114mm 5.7 lbs
ARRI Signature Zooms
ARRI designed the Signature Zooms to perfectly match the Signature Prime set of lenses. Built with LPL mounts for optimal full frame performance, the 16-32mm T2.8, 45-135mm T2.8, and 65-300mm T2.8 zooms are both fast and well-balanced for their size. They feature the same pleasing bokeh, smooth focus, and the warm cinematic tone of the prime lens set.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 16-32mm T2.8 7.6" 156 mm 7 45-135mm T2.8 3'4" 114 mm 8.25 65-300mm T2.8 6' 156 mm 17.13
Century Compact Zooms
Century Optics rehoused two Canon 35mm SLR lenses for use on cinema productions. The new housings offer uniform focus, iris, and zoom gears as well as a robust design intended to meet the demands of cinema production, with both a 17-35mm and 24-78mm being available. A 150-600mm long telephoto lens is also available for Super35 format cinematography.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 28-70mm T3-22 3' 95mm 3.25
Fujinon Premista Zooms
Fujinon's Premista lightweight and compact full frame zoom lenses are designed to cover the newest large format digital cameras. They offer prime lens caliber optical quality and low distortion with minimal color aberrations and pleasant bokeh with excellent color rendition. These lenses feature ZEISS eXtended Data systems for delivering lens metadata to the camera.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 19-45mm T2.9 24" 114 mm 7.28 28-100mm T2.9 2' 7" 114mm 8.4 80-250mm T2.9 4’ 11” 114mm 8.4
Leitz Cine Zooms
The Leitz Cine Zoom set consists of the 25-75mm and 55-125mm. Both zooms are a fast T2.8 and designed to cover full frame formats. They are color matched with the Leitz Primes and feature no light loss over the entire zoom range when zooming. They exhibit exceptionally low distortion, minimal breathing, and no visible chromatic aberration.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 25-75mm T2.8 3’ 114 mm 8.2 55-125mm T2.8 3’5” 114 mm 9.7
The MasterBuilt Zoom lenses were designed to pair seamlessly with the MasterBuilt Classic Primes. Featuring the same soft edge, similar contrast, and a similar polishing process, the MasterBuilt Zooms exhibit the same vintage-like flares and characteristics as their prime cousins.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 25-125mm T3.2 2'3" 162mm 11.6 lbs
Musashi Takumi Zooms
The Musashi Optics made Takumi Full Frame Zooms are available in 20-129mm T2.9 and 40.6-332mm T4.8 and feature clean, flat images with excellent flare reduction and even illumination on full frame sensors. The 9 blade round iris renders smooth bokeh with slightly peaked edges.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 29-120mm T2.9 4' 136mm 16.5 lbs 40.6-332mm T4.8 4'1" 136mm 20.3 lbs
ZEISS Compact Zooms
ZEISS engineered their Compact Zooms as a large format zoom option to compliment the Compact Prime and Supreme Prime lenses. Available in 15-30mm T2.9, 28-80mm T2.9, and 70-200mm T2.9, these zooms are well suited for large format cinematography and come in lightweight compact housings making them easy to use in a variety of setups.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 15-30mm T2.9 1’10” 114mm 5.7 28-80mm T2.9 2’8” 95mm 5.5 70-200mm T2.9 5' 95mm 6.2
