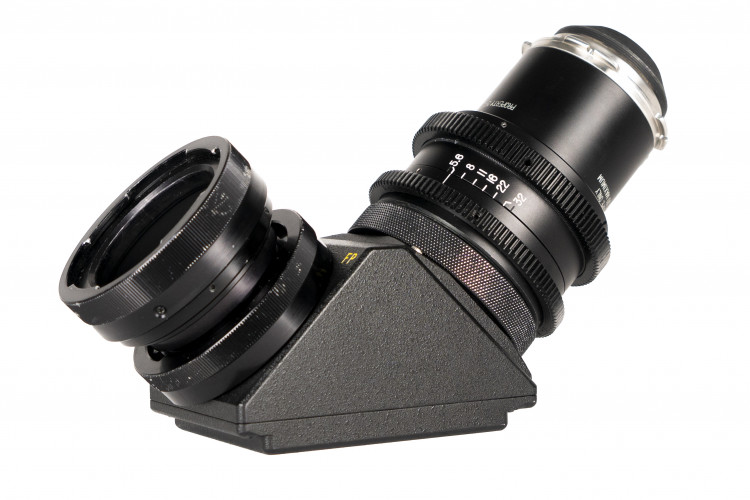

Clairmont Baby Periscope

The compact Clairmont Baby Periscope was designed to be much shorter than the Century 2000 Periscope, and therefore, it can get into places that were not previously possible. Like its counterpart, it was designed to allow the user to extend the lens away from the camera to get viewpoints that could not otherwise be accomplished. It can be configured with a straight relay as well as with a right angle attachment.

At a right angle it is possible to achieve shots that are actually above, below, to the right or to the left side of the camera. It contains integrated focus and iris gears for use with follow focus systems and iris control systems. Its linear iris markings make it perfect for using with automatic iris systems. The iris "T" stop range is T5.6 - T32. Setting the iris is simple. You set the lens itself to wide open and make the iris setting directly on the Clairmont Camera Baby Periscope iris ring. No matter which configuration you use, there will be no light loss. Simply set your marks just as your light meter indicates. Easy! The Clairmont Baby Periscope holds two 40.5 filters. The Clairmont Baby Periscope measures 8 inches from the camera mount to the bottom of the prism housing and weighs 4.5 pounds.

Focal Length Aperture Close Focus Front Diameter Weight (lbs)
T5.6 4.50 lbs
