ARRI / ZEISS Master Anamorphic Primes
A joint collaboration between ARRI and ZEISS, the Master Anamorphic lenses are an anamorphic counterpart to the Master Prime lenses. Master Anamorphic’s are known for their near-perfect image quality, with no breathing and minimal anamorphic characteristics common in most anamorphic lenses. This perfect image quality limits their anamorphic flare and bokeh characteristics. If those characteristics are desired, the Master Anamorphics have a Flare Module that can be installed to accentuate those effects, producing a more natural anamorphic look.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 28mm T1.9 2' 3" 114mm 5.5 35mm T1.9 2' 6" 95mm 5.5 40mm T1.9 2' 6" 95mm 6 50mm T1.9 2' 6" 95mm 5.5 60mm T1.9 3' 95mm 5.5 75mm T1.9 3' 95mm 5.5 100mm T1.9 3' 3" 95mm 7 135mm T1.9 4' 95mm 8.4 180mm T2.8 5' 95mm 6.9 -
Atlas Orion Anamorphic Primes
The Atlas Orion 2x squeeze anamorphic primes are a cost-conscious alternative to other anamorphic lenses, and their quality and effects are unique in this price range. They’re designed using a true, front element anamorphic design, deliver the striking beauty of painterly waterfall bokeh, disproportionate breathing, and a signature yet controlled flare.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 21mm T2 1' 6" 136mm 6.9 lbs 25mm T2 1'6" 136mm 6.2 lbs 28mm T2 1'6" 136mm 6.2 lbs 32mm T2 1'9" 114mm 5 lbs 40mm T2 2’ 114mm 5 lbs 50mm T2 2' 114mm 5 lbs 65mm T2 2.75’ 114mm 5 lbs 80mm T2 3' 114mm 5 lbs 100mm T2 3.5’ 114mm 6.7 lbs -
Atlas Orion Anamorphic Primes - Silver Edition
The Atlas Orion Silver Edition 2x squeeze anamorphic primes are a modified version of the original Atlas Orions. The Silver Editions feature a new coating process that produces monochromatic flares rather than the multi-colored flares of the original set. They perform optically similar to the original set.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 32mm T2 1.75" 114mm 4.7 40mm T2 2' 114mm 5.2 50mm T2 2.5" 114mm 5 65mm T2 2.75" 114mm 5 80mm T2 3' 114mm 6 100mm T2 3.5" 114mm 6.7 -
Caldwell Chameleon SC Series Anamorphic Primes
The Caldwell Chameleon’s offer a retro anamorphic look with modern conveniences. The entire set of 1.79x squeeze anamorphic’s will cover full frame sensors and offer optical and flare characteristics that are inspired by anamorphic’s from the past century. The SC set listed below is converted to Super35 coverage for cinematographers hoping to capture more edge aberration and optical character on smaller formats.
Also available in XC coverage mode for Large Format anamorphic.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 32mm 2 2'7" 114mm 6 lbs 40mm 2 2'7" 114mm 6 lbs 50mm 2 2'7" 114mm 6 lbs 60mm 2 2'7" 114mm 6 lbs 75mm 2 2'7" 114mm 6 lbs 100mm 2.6 2'7" 114mm 6 lbs -
Caldwell Chameleon XC Series Anamorphic Primes
The Caldwell Chameleon Anamorphic prime lenses offer a retro anamorphic look with modern mechanics. The entire 1.79x squeeze set, 48mm, 60mm, 75mm, 90mm, 112mm, & 150mm will cover full frame sensors and offer the traditional optical aberrations and flare characteristics unique to front anamorphic lenses. The Chameleon Primes employ a Stokes focus system that creates a fairly unique focusing experience compared to many other anamorphic primes. The aesthetic result is the compression of the subject in the vertical plane only. This creates an artistic “attention pull” without creating a “zoom” effect as well. Also, this system helps maintain a constant anamorphic compression across the entire field of view. This more uniform compression helps reduce the “mumps syndrome” that occurs in many other anamorphic lens designs. The complete set can also be converted to Super 35 coverage for cinematographers hoping to capture more edge aberration and optical character on smaller formats.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 48mm T3 2’7” 114mm 6 60mm T3 2’7” 114mm 6 75mm T3 2’7” 114mm 6 90mm T3 2’7” 114mm 6 112mm T3 2’7” 114mm 6 150mm T3 2’7” 114mm 6 -
Canon K-35 Anamorphic Primes
The Canon K-35 anamorphics are a marriage of the classic Canon K-35 primes to a 2x squeeze anamorphic front optical group, to create fast, sharp, beautiful anamorphic lenses.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 35mm T1.3 3.5" 136mm 7.8 lbs 55mm T1.3 3' 110mm 5 lbs 85mm T1.3 3.7' 110mm 7.8 lbs -
Cineovision Anamorphic Primes
Dating back to the 1970’s, Cineovision Anamorphics are vintage lenses with more character than many lenses of the era. They render warm pleasing skin tones with unique anamorphic bokeh. They defocus in a painterly manner and produce star-like horizontal anamorphic flares. Cineovisions err on the softer side and feature a sharper center with more fall off on the edges than modern anamorphic lenses.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 35mm T1.4 3' 130mm 7.1 lbs 50mm T1.4 3' 95mm 5.5 lbs 85mm T1.4 2' 103mm 6.6 lbs -
Clairmont Anamorphics Primes
The Clairmont Anamorphics are a rehoused version of the classic Kowa Anamorphic lenses, with a new 32mm focal length designed around a wide angle adapter which is built onto a 40mm Kowa Anamorphic. These lenses feature modern housings designed especially for cinema application and feature uniform focus and iris gearing across the entire set.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 32mm T2.3 2'3" 130mm 5 lbs 40mm T2.3 3' 80mm 2.49 lbs 50mm T2.3 3' 80mm 2.67 lbs 75mm T2.8 3' 80mm 3.4 lbs 100mm T3.4 5' 80mm 4.2 lbs -
Cooke 1.8x Full Frame Plus Anamorphic Primes
Cooke’s full frame anamorphic prime’s feature a 1.8x squeeze factor to allow these lenses to fully cover large format sensors like those found in the ALEXA LF and Sony Venice. These lenses produce Cookes warm color pallet with unique anamorphic effects caused by the uncommon squeeze factor. They also feature the Cooke i/Data protocol for sending lens metadata to the camera system.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 32mm T2.3 2' 11" 136 mm 9.2 40mm T2.3 2' 11" 136 mm 9.7 50mm T2.3 2' 9" 110 mm 8.8 75mm T2.3 3' 3" 110 mm 7.7 85mm MACRO T2.8 22" 136 mm 11.4 100mm T2.3 3' 10" 110 mm 8.4 135mm T2.3 4' 10" 110 mm 11.0 180mm T2.9 6' 6" 110mm 13.6 -
Cooke 1.8x Full Frame SF Plus Anamorphic Primes
Cooke’s full frame anamorphic prime’s feature a 1.8x squeeze factor to allow these lenses to fully cover large format sensors like those found in the ALEXA LF and Sony Venice. These lenses produce Cookes warm color pallet with unique anamorphic effects caused by the uncommon squeeze factor. They also feature the Cooke i/Data protocol for sending lens metadata to the camera system.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 32mm T2.3 2' 11" 136mm 9.2 lbs 40mm T2.3 2' 11" 136mm 9.7 lbs 50mm T2.3 2' 9" 110mm 8.8 lbs 75mm T2.3 3' 3" 110mm 7.7 lbs 85mm MACRO T2.8 22" 136mm 11.4 lbs 100mm T2.3 3' 10" 110mm 8.4 lbs 135mm T2.3 4' 10" 110mm 11 lbs -
Cooke Anamorphic Primes
The Cooke Anamorphic lenses feature the same great “Cooke Look” their lenses are known for, but in a true anamorphic package. These lenses produce a truly cinematic frame by marrying a warm Cooke color pallet. They also feature the Cooke i/Data protocol for sending lens metadata to the camera system.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 25mm T2.3 3' 136mm 9.0 32mm T2.3 2'9" 110mm 7.2 40mm T2.3 2'9" 110mm 7.7 50mm T2.3 2'9" 110mm 8.1 65mm MACRO T2.6 18" 136mm 11.8 75mm T2.3 3'3" 110mm 7.4 100mm T2.3 3'9" 110mm 7.6 135mm T2.3 5' 110mm 9.0 180mm T2.8 6'6" 110mm 13 300mm T3.5 8'45" 136 mm 20.7 -
Cooke Anamorphic/i SF Primes
Based on the Cooke Anamorphics, the Special Flare (SF) Anamorphics offer the same great qualities of the Cooke Anamorphics, but with revised coatings to dramatically increase the anamorphic flare effects of the lenses, without losing any of the Cooke qualities their original anamorphics were known for.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 25mm T2.3 3' 136mm 9.0 32mm T2.3 2'9" 110mm 7.4 40mm T2.3 2'9" 110mm 8.0 50mm T2.3 2'9" 110mm 8.2 65mm MACRO T2.6 18" 136mm 11.8 75mm T2.3 3'3" 110mm 7.6 100mm T2.3 3'9" 110mm 7.6 135mm T2.3 5' 110mm 9.0 180mm T2.8 5' 3" 110mm 12.8 300mm T3.5 8'4" 136 mm 20.7 -
Elite Anamorphic Primes
The Elites are Russian lenses produced in the late 20th century as a spiritual successor to older Russian anamorphic lenses. While they can be considered vintage in their coatings and look, their housings are more modern in design. These lenses are well known for their extreme anamorphic flare effects, and mild distortion at the wider focal lengths, which give them a character unlike other anamorphic lenses on the market today.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 24.5mm T2.1 3'4" 140mm 5.9 32mm T2.2 3'4" 156mm 11.1 50mm T2.2 3'4" 124mm 7.7 75mm T2.2 3'4" 124mm 8.3 100mm T2.1 3'4" 124mm 15.5 135mm T2.5 5' 124mm 15 -
Hawk C-Series Anamorphic Primes
The C-Series are some of the first sets of Hawk lenses produced by Vantage back in the 90’s. They’re compact form factor makes them easier to work with than some anamorphic lenses. They’re softer than more modern anamorphics while still providing enough sharpness to render a scene and render beautiful skin tones. Their anamorphic focus effects and flares are particularly appealing, as they emulate much older anamorphic designs without the flaws inherent in vintage lenses.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 30mm T2.2 3' 6" 142mm 9.8 40mm T2.2 3'6" 110mm 4.5 50mm T2.2 3'6" 110mm 4.5 60mm T2.2 3'6" 110mm 4.7 75mm T2.2 3'6" 110mm 5 100mm T3.0 3'6" 110mm 6 135mm T3.0 3' 6" 110mm 12 -
Hawk V-Lite Anamorphic Primes
Vantage’s V-Lite series offer similar optical characteristics to the V-Series in a compact, lightweight package geared toward steadicam, hand held, and remote applications. They offer a more robust housing, improved optics, and perfected anamorphic characteristics. The V-Lites are the natural evolution of anamorphic lenses and maintain some of the classic elements of the anamorphic format while also introducing modern design techniques to make them easier to work with and more optically precise.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 28mm T2.2 2’7" 120mm 4.6 35mm T2.2 3’3” 120mm 6.4 45mm T2.2 3’3” 104mm 4.2 55mm T2.2 3’3” 104mm 4.4 55mm T2.2 1’2” 120mm 6.6 65mm T2.2 3’3” 104mm 4.4 80mm T2.2 2’6” 104mm 5 110mm T3 2’6” 104mm 5.7 140mm T3.5 2’6” 104mm 5.9 -
Hawk V-Lite Vintage '74 Anamorphic Primes
The Vintage ’74 Hawk V-Lites are a revised version of the original Hawk V-Lite Lenses. The ‘74’s feature a vintage coating style that greatly accentuates the anamorphic effects and flares of the lenses, making them perform more like vintage anamorphics from an older era. The housings of the V-Lite 74’s are functionally identical to the standard Hawk V-Lites.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 28mm T2.3 2’7” 120mm 4.6 35mm T2.3 3’3” 120mm 6.4 45mm T2.3 3’3” 104mm 4.2 55mm T2.3 3’3” 104mm 4.4 55mm Macro T2.2 1’2” 104mm 6.6 65mm T2.3 3’3” 104mm 4.4 80mm T2.3 3’3” 104mm 5 110mm T3.1 3'3" 104mm 5.7 140mm T3.7 3'6" 104mm 6.6 -
Hawk V-Series Anamorphic Primes
The V-Series Hawk lenses were produced by Vantage in the early 2000’s. They are an evolution of the C-Series and exhibit some similar aesthetic properties as the C-Series lenses, although the V-Series are larger and their housings are more highly engineered with internal focusing mechanisms. The V-Series are a perfect option for those trying to marry modern and vintage looks.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 25mm T2.2 3' 6" 142mm 6.2 35mm T2.2 3' 156mm 12.3 50mm T2.2 2' 125mm 8.1 60mm T2.2 2' 125mm 8.8 100mm T2.2 3' 6" 125mm 14.5 135mm T3.0 3' 6" 125mm 13.8 180mm T3.0 6' 6" 142mm 16.5 250mm T3.0 6' 6" 142mm 17.2 -
Kowa Anamorphic Primes
Originating in Japan in the 1970’s, the 2x Kowa Anamorphic Lenses are limited in focal lengths, but particularly unique in their size, design, and optical characteristics. They feature traditional vintage anamorphic characteristics such as long horizontal flares and large oval bokeh. A wide angle adapter may be attached to the 40mm to convert it to a 32mm equivalent.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 40mm T2.3 3' 74mm (But some adapted to 80mm) 2.2 lbs 50mm T2.3 3' 74mm (But some adapted to 80mm) 2.2 lbs 75mm T2.8 3' 74mm (But some adapted to 80mm) 2.8 lbs 100mm T3.4 5' 74mm (But some adapted to 80mm) 3.2 lbs -
Laowa Proteus Silver, Amber, & Blue Anamorphic Lenses
The Proteus Silver & Amber Anamorphics are a modern Super35 2x anamorphic lens set introduced by Laowa. They offer a sharp and clean image with pleasing skin tone reproduction and minimal optical aberration, all in a robust modern package. Each lens is tuned to a specific colored flare, with the Silver flare model offering a neutral white flare that captures the color of whatever light is producing the flare within the lens, the Amber flare model offering a warmer flare that adjusts the light to the color of the amber coating, and the Blue flare model offering a blue flare from whatever light flares the lens. (Silver Lenses Pictured)
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 28mm T2 1' 7" 114mm 5.45 35mm T2 1.8' 114mm 5.29 45mm T2 1.8' 114mm 5.29 60mm T2 2.3' 114mm 5.07 85mm T2 2.7' 114mm 6.5 100mm T2 3' 3" 114mm 6.25 -

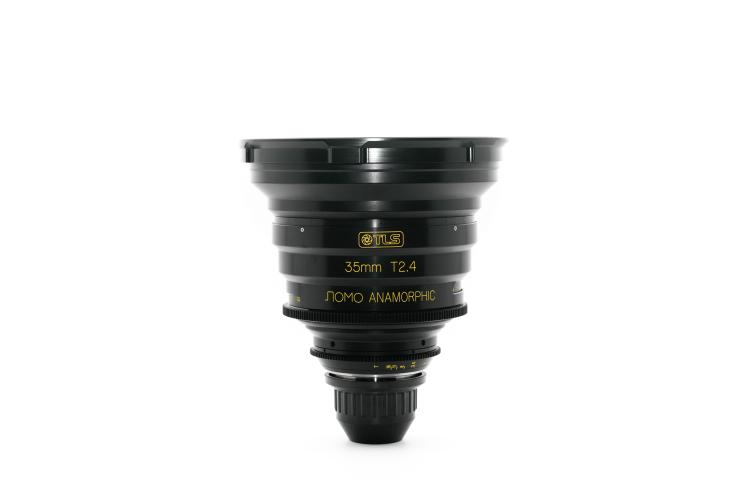

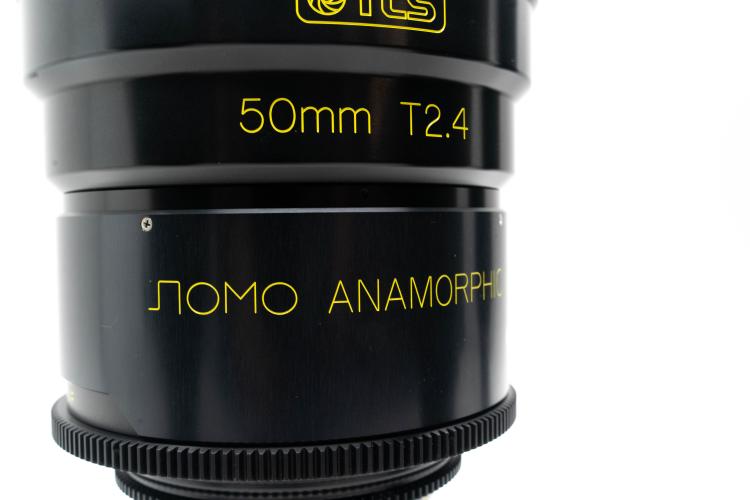

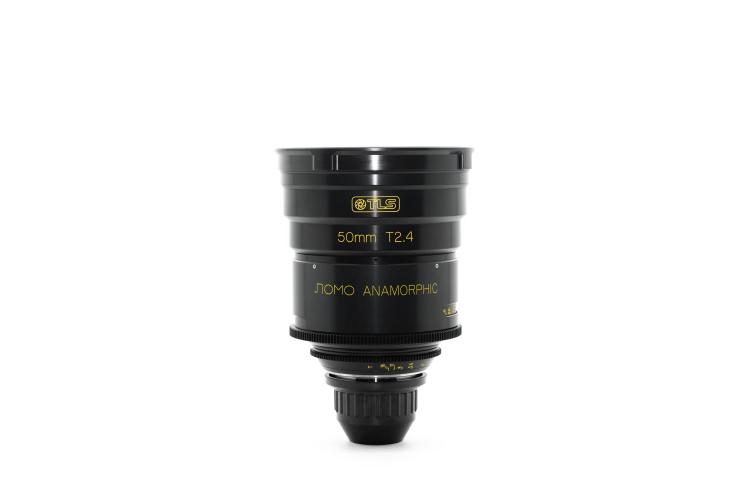

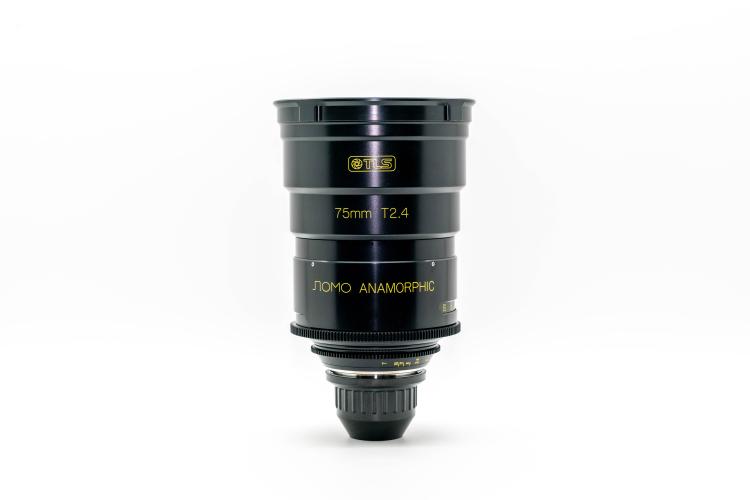

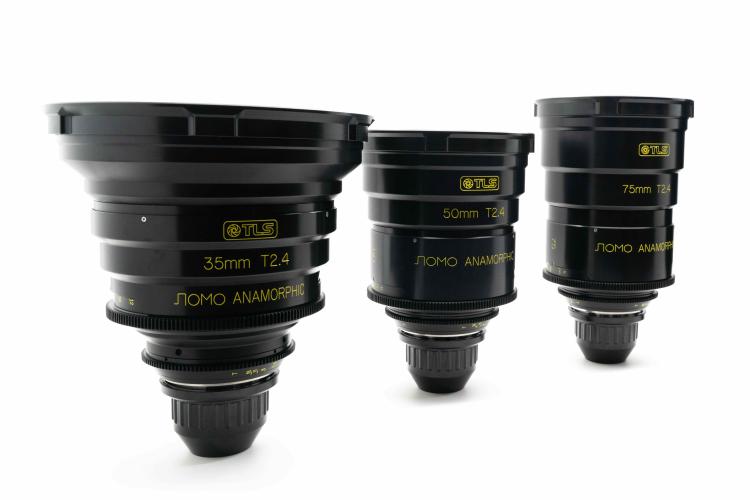

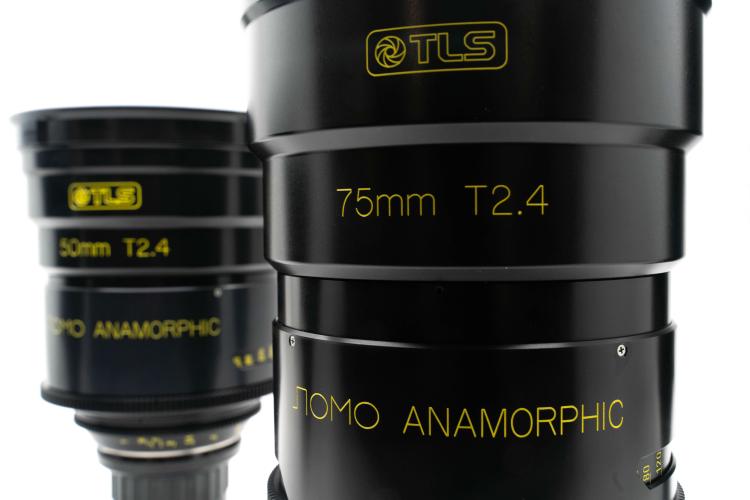

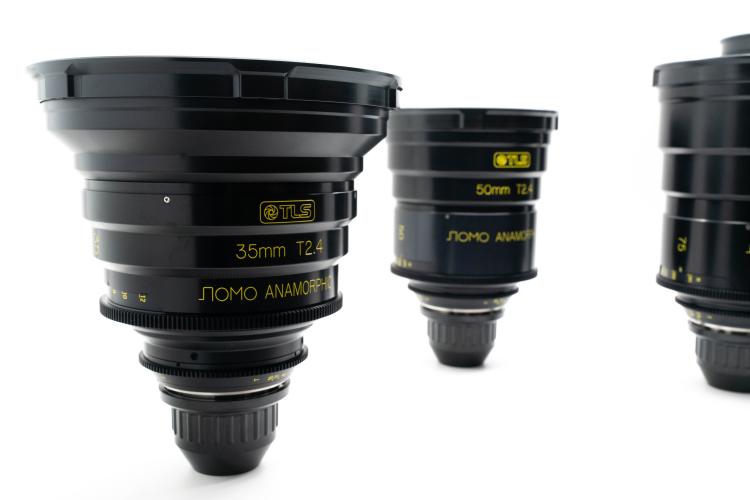

Lomo Anamorphic Primes
The Lomo Anamorphics are Russian lenses that date back to the 1970’s. Lomo’s are well known in the business for exhibiting messy and unique anamorphic and optical effects. Their characteristics make them more akin to art lenses than cinema lenses, but their unique look makes them appealing for certain types of work.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 35mm T2.5 3' 6" 141mm 7.5 lbs 50mm T2.4 3' 104mm 3.5 lbs 75mm T2.4 3' 3" 114mm 4.2 lbs 150mm T3.6 3' 6" 80mm 3.8 lbs 300mm T4.7 13' 95mm 4.3 lbs 500mm T6.9 13' 95mm 6.8 lbs -
NEO-AO Anamorphic Primes
The NEO-AO Anamorphics were designed to emulate vintage anamorphics from the mid-20th century, such as the TODD-AO and Cineovision anamorphics. They use a combination of Cooke Speed Panchro and Canon FD spherical groups married to an anamorphic optic to create their unique look. Each lens is mechanically robust, with uniform gear spacing and bullet proof construction.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 32mm T2.2 3' 136mm 6 lbs 40mm T2.2 2' 6" 114mm 6 lbs 50mm T2.1 2' 114mm 5 lbs 60mm T1.6 2' 114mm 5 lbs 75mm T2.1 2' 114mm 5.5 lbs 85mm T2 2' 114mm 6 lbs 100mm T2.5 2' 9" 114mm 6.5 lbs 127mm T3.1 3' 114mm 6.5 lbs -
Nikkor Telephoto Anamorphic Primes
The 400mm Nikkor Telephoto Anamorphic is a Nikkor Prime Telephoto Lens that has been modified with an anamorphic rear. This will not produce anamorphic bokeh due to the location of the iris in relation to the anamorphic optic in this conversion. The lens produces a very clean anamorphic image with minimal flares.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 400mm T4.0 9' 120mm 7.5 -
Scorpio Anamorphic Primes
Servicevision made the Scorpio Anamorphic Primes for use with large format cameras, perfect for use with the Sony Venice, RED Monstro, or ALEXA LF sensors. The Scorpio Anamorphics produce excellent field sharpness, warmth, and close focus not found in most anamorphic designs.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 25mm **does not cover FF T2.2 1'6" 95mm n/a 35mm T2.2 1'6" 95mm n/a 40mm T2.2 1'8" 95mm n/a 50mm T2.2 1'10" 95mm n/a 75mm T2.2 2'6" 95mm n/a 100mm T2.2 3'3" 95mm n/a 135mm T2.8 4'3" 95mm n/a 150mm T2.8 5' 95mm n/a -
Todd-AO Anamorphic Primes
Originally introduced as part of the Todd-AO film format and camera systems back in the 1950’s, the Todd-AO anamorphics are very unique in their optical properties. They exhibit extreme anamorphic effects and offer milky, low-contrast images with a warm color tone. Their housings have been adapted for modern cinema use with new focus and iris geared pitch rings.
Focal Length Aperture Close Focus Front Diameter Weight (lbs) 28mm T3.9 15' 121mm 2.2 35mm T1.4 2' 6" 130mm 7.4 38mm T2.3 3' 136mm 4.2 50mm T2.3 3' 110mm 4 55mm T1.2 3' 102mm (adapted to 110mm) 5.6 75mm T2.2 3' 110mm 4.6 100mm T3.0 3' 98mm 5.2 200mm Macro T4.0 1'5.7" 110mm 3.6
