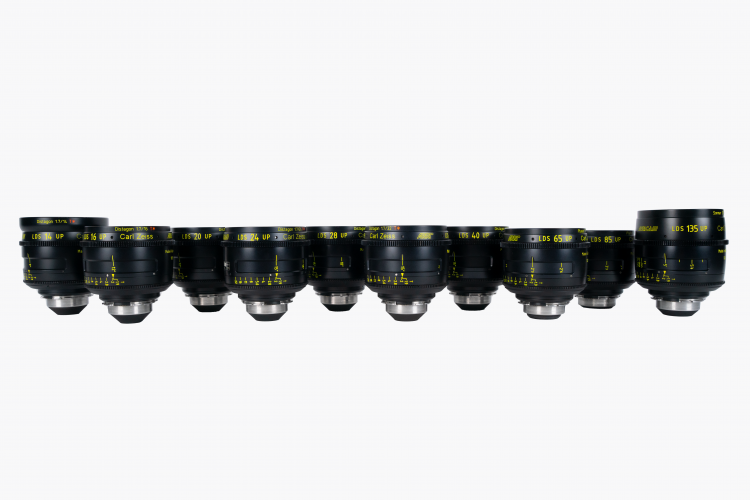

ZEISS Ultra Primes (LDS)
The LDS Ultra Primes are optically identical to the normal Ultra Primes, but integrate ARRI’s LDS (Lens Data System) to provide lens information to the camera system. This is key for visual effects heavy productions and also a great creature comfort for any job.
| Focal Length | Aperture | Close Focus | Front Diameter | Weight (lbs) |
|---|---|---|---|---|
| 14mm | T1.9 | 9" | 114mm | 4 |

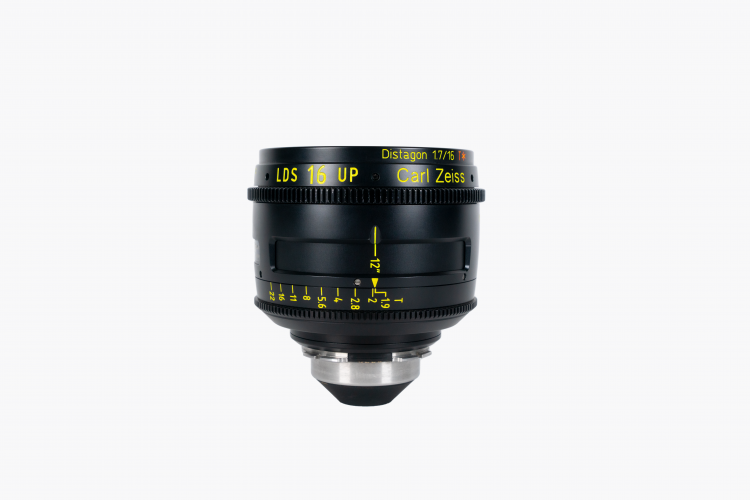

| 16mm | T1.9 | 1' | 104mm | 3.3 |

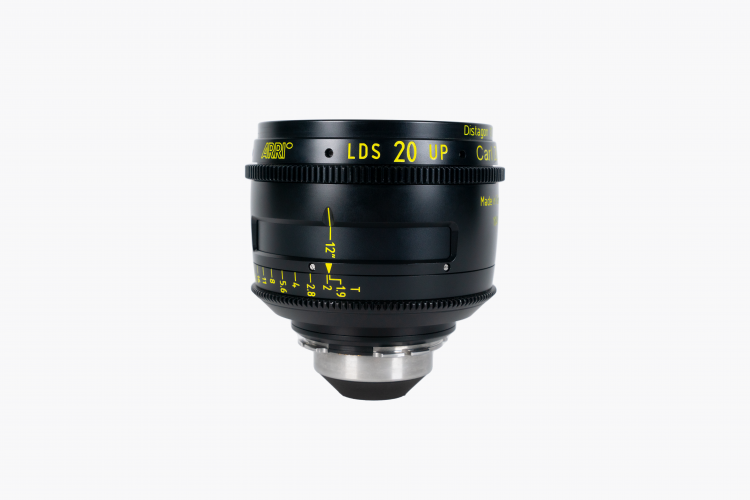

| 20mm | T1.9 | 1' | 104mm | 3.3 |
| 24mm | T1.9 | 1' | 104mm | 3.9 |
| 28mm | T1.9 | 1' | 104mm | 3.3 |
| 32mm | T1.9 | 1' 3" | 104mm | 2.1 |

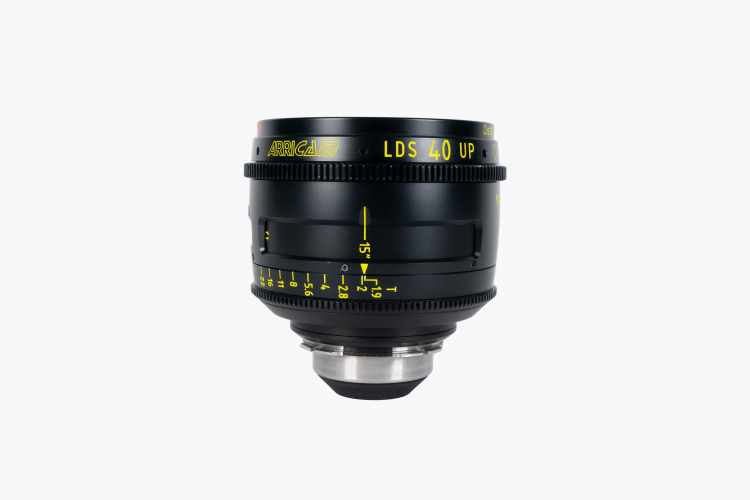

| 40mm | T1.9 | 1' 3" | 104mm | 2.1 |
| 50mm | T1.9 | 2' | 104mm | 2.6 |
| 65mm | T1.9 | 2' 3" | 104mm | 2.1 |
| 85mm | T1.9 | 3' | 104mm | 3.3 |
| 100mm | T1.9 | 3' 3" | 104mm | 3.3 |
| 135mm | T1.9 | 5' | 104mm | 4.4 |
