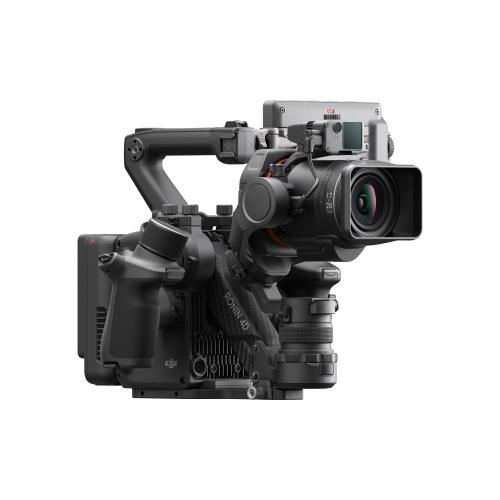

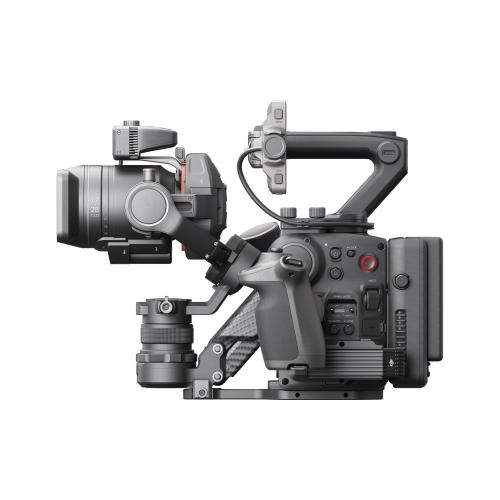

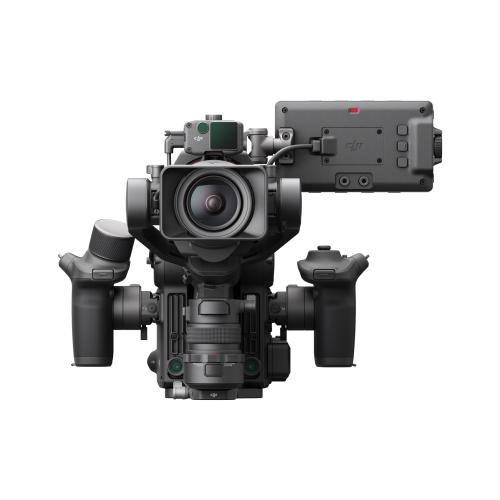

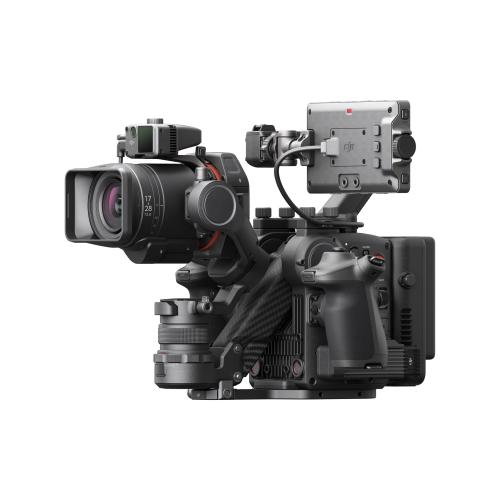

DJI Ronin 4D 4-Axis Cinema Camera

db9962f1486a9f2f840903df8f089667@origin 2d3638cbdb6922509846c4325b294688@origin 80f2950c2c61707d703c2d29af72738a@origin 79ce938d2cbda45824579048d22e61cd@origin

The Ronin 4D is a unique camera, featuring a gimbaled sensor head attached to a boom arm built into a high resolution cinema camera body. The 4D opens up a variety of cinematography options for filmmakers, allowing handheld stabilization shots with a high resolution full frame sensor without the need for a larger cinema camera built or dedicated stabilizing system.

Sensor Size: Full Frame

Maximum Resolution: 6K or 8K (model dependent)

Sensor Frame Rates (6K): 120 FPS @ 4K (60 FPS @ 6K FF)

Sensor Frame Rates (8K): 120 FPS @ 4K (60 FPS @ 8K FF)

Weight: 10.29 lbs (Main Body + Gimbal only)

Product highlights

Sensor 35mm full-frame CMOS image sensor
Frame Rate DJI PROSSD 1TB Recording Formats
No restriction on recording format


CFexpress 2.0 Type B Recording Formats

ProRes 422 HQ/LT:
6K: 23.976/24/25/29.97/30fps

C4K: 23.976/24/25/29.97/30/48/50/
59.94/60/72/96/100/120fps

2K: 23.976/24/25/29.97/30/48/50/
59.94/60/72/96/100/120fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/
59.94/60/72/96/100/120fps

2K: 23.976/24/25/29.97/30/48/
50/59.94/60/72/96/100/120fps


USB-C SSD Recording Formats

ProRes 422 HQ/LT:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
Base ISO X9-8K: EI 200 to EI 6400
With Dynamic Range Expansion off: Dual native ISO 320/1600
With Dynamic Range Expansion on: Dual native ISO 800/4000

X9-6K: EI 200-12800, dual native ISO 800/5000
